At craft fairs, I've often been asked about a kit which allows you to create your own design of light-emitting diodes on foam board - this is it!
Perhaps you would like to make your initial into a design or perhaps you would like to make a random arrangement of l.e.d.s? It's up to you!

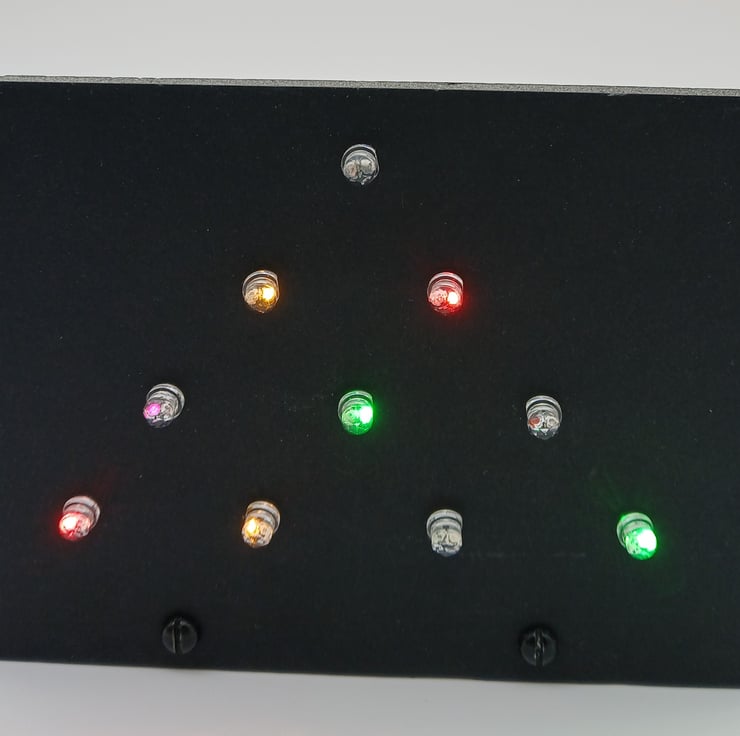

The picture shows a completed kit with a triangular arrangement of l.e.d.s and the foam board in a landscape orientation.
You have 14 days, from receipt, to notify the seller if you wish to cancel your order or exchange an item.
Unless faulty, the following types of items are non-refundable: items that are personalised, bespoke or made-to-order to your specific requirements; items which deteriorate quickly (e.g. food), personal items sold with a hygiene seal (cosmetics, underwear) in instances where the seal is broken; digital items.
Please note that if your order is being posted outside mainland UK, you (or the recipient) may have to pay customs or VAT charges and a handling fee. The seller is not responsible for any charges or fees that may incur.
Full description
A "design it yourself" construction kit containing an unpierced piece of foam board (approx. 10 cm x 16 cm), 10 light-emitting diodes, solder, link wire and a plastic template for you to mark the positions of the holes for the l.e.d.s.
Different versions of this kit are available. Please choose the colour of the ten l.e.d.s you would like in your kit. Choose either two l.e.d.s of each colour (blue, green, pink, red and yellow) or choose ten l.e.d.s of a single colour (either all blue, all green, all pink, all red or all yellow).
Please have a look at a working version of the "D.I.Y. L.E.D. Display" kit on the Irby Electronics YouTube channel.
This circuit requires 2 x AA batteries (not supplied). When this circuit was tested, a set of Duracell Plus Power batteries was still producing a good light output after 40 hours of continuous use.
The joints in the circuit can be made by simply twisting wires together and then crimping the connection with pliers. Soldering, however, makes a better electrical joint.
These tools are needed to make this kit (not supplied):
small pliers for bending component leads,
small wire cutters for cutting link wire,
slotted screwdriver for securing foam board to wooden base
sewing needle for piercing foam board
small, low power soldering iron, e.g. 15 watt, 18 watt or 25 watt (only if soldering is to be attempted).
Please read the safety warning in the About Irby Electronics section before ordering a kit.
Designed by John Doyle in Irby, Wirral
