About this item
This kit contains five light-emitting diodes arranged in the pattern of the brightest stars in Cassiopeia. When switched on, the l.e.d.s flash on and off, independently, to make a sparkling display. Different versions of this kit are available. Please choose the colour of the five l.e.d.s you would like in your kit. Choose either one l.e.d. of each colour (blue, green, pink, red and yellow) or choose five l.e.d.s of a single colour (either all blue, all green, all pink, all red or all yellow). Please have a look at a working version of the "Cassiopeia" circuit on the Irby Electronics YouTube channel. When this circuit was tested, a set of Duracell Plus Power batteries was still producing a good light output after 90 hours of continuous use. The circuit is made on foam board (approx. 16 cm x 10 cm) and requires 2 x AA batteries (not supplied). The joints in the circuit can be made by simply twisting wires together and then crimping the connection with pliers. Soldering, however, makes a better electrical joint. These tools are needed to make this kit (not supplied): small pliers for bending component leads, small wire cutters for cutting link wire, slotted screwdriver for securing foam board to wooden base, small, low power soldering iron, e.g. 15 watt, 18 watt or 25 watt (only if soldering is to be attempted). Please read the safety warning in the About Irby Electronics section before ordering a kit.
About this item

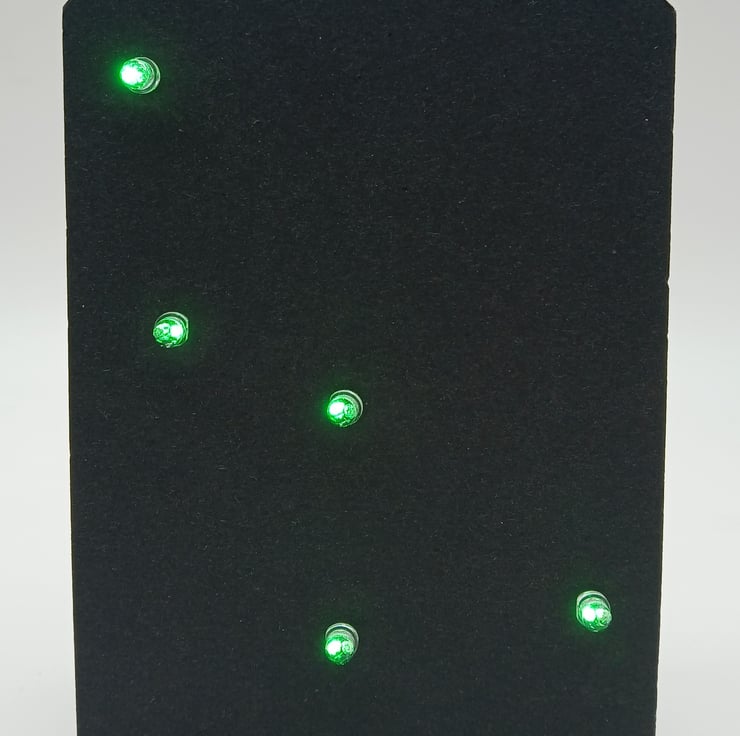

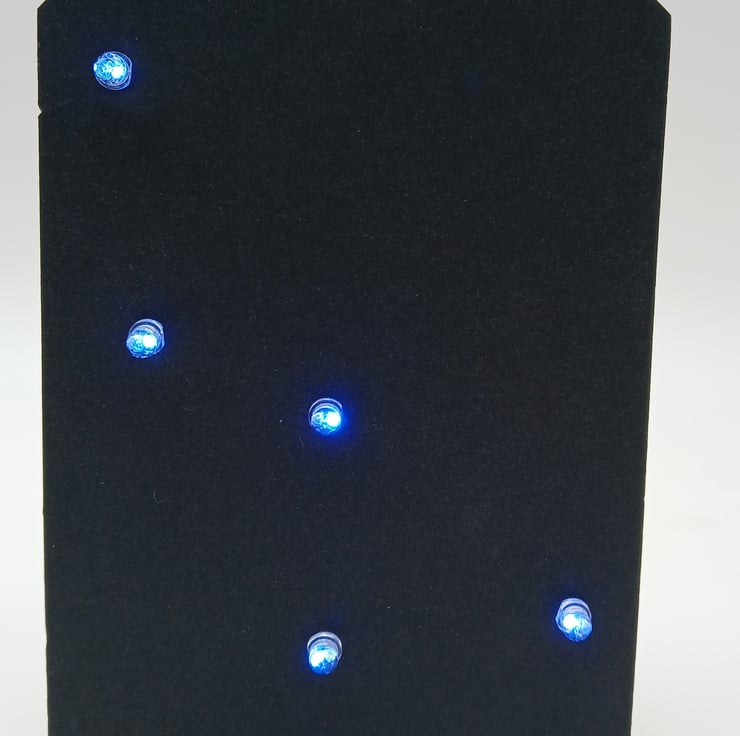

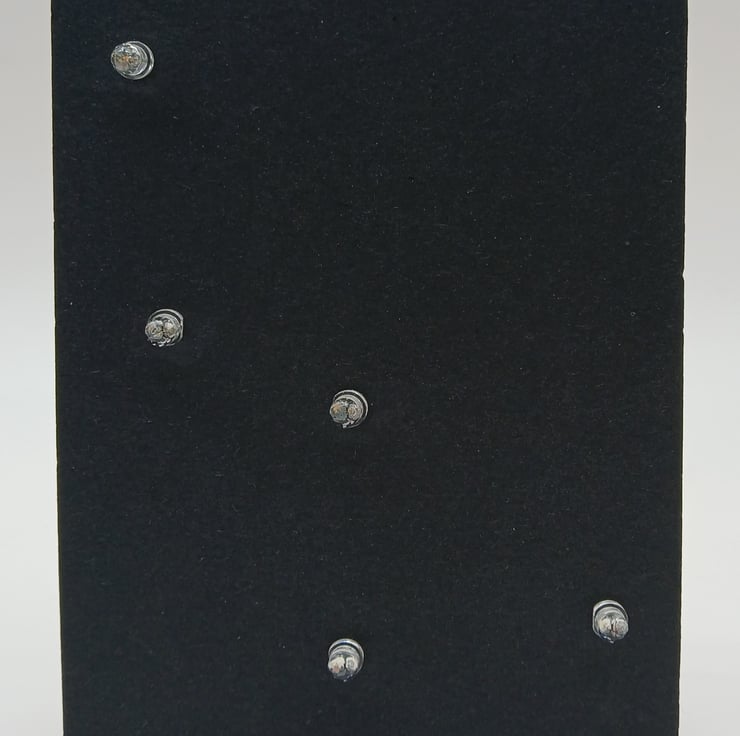

This kit contains five light-emitting diodes arranged in the pattern of the brightest stars in Cassiopeia. When switched on, the l.e.d.s flash on and off, independently, to make a sparkling display.
Different versions of this kit are available. Please choose the colour of the five l.e.d.s you would like in your kit. Choose either one l.e.d. of each colour (blue, green, pink, red and yellow) or choose five l.e.d.s of a single colour (either all blue, all green, all pink, all red or all yellow).
Please have a look at a working version of the "Cassiopeia" circuit on the Irby Electronics YouTube channel.
When this circuit was tested, a set of Duracell Plus Power batteries was still producing a good light output after 90 hours of continuous use.

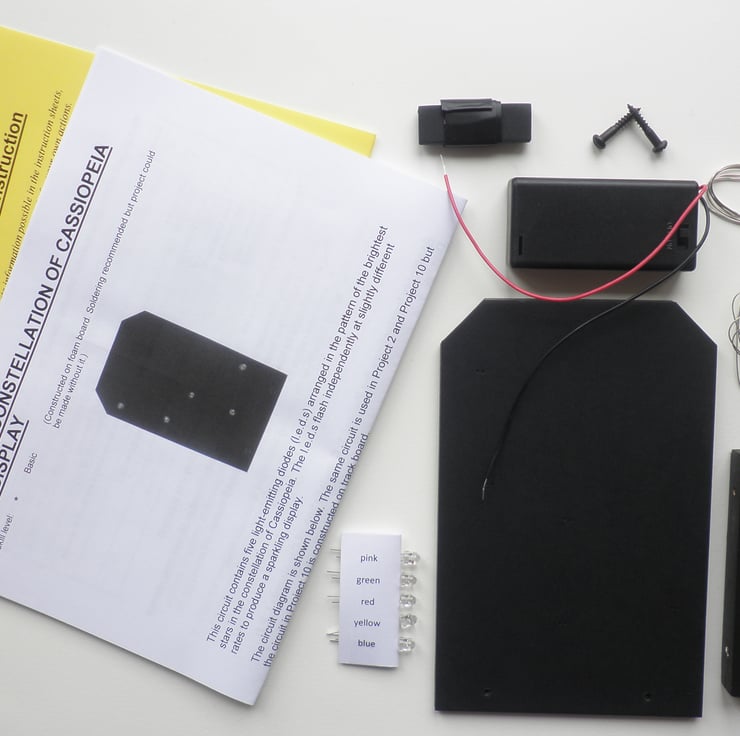

The circuit is made on foam board (approx. 16 cm x 10 cm) and requires 2 x AA batteries (not supplied). The joints in the circuit can be made by simply twisting wires together and then crimping the connection with pliers. Soldering, however, makes a better electrical joint.
These tools are needed to make this kit (not supplied):
small pliers for bending component leads,
small wire cutters for cutting link wire,
slotted screwdriver for securing foam board to wooden base,
small, low power soldering iron, e.g. 15 watt, 18 watt or 25 watt (only if soldering is to be attempted).
Please read the safety warning in the About Irby Electronics section before ordering a kit.
